This is Guangdong Juchen Equipment Technology Co.,Ltd.We have over 16 years of professional dedication to the design,manufacturing,installation,and retrofitting of smart melting and casting equipment in the aluminum processing industry.

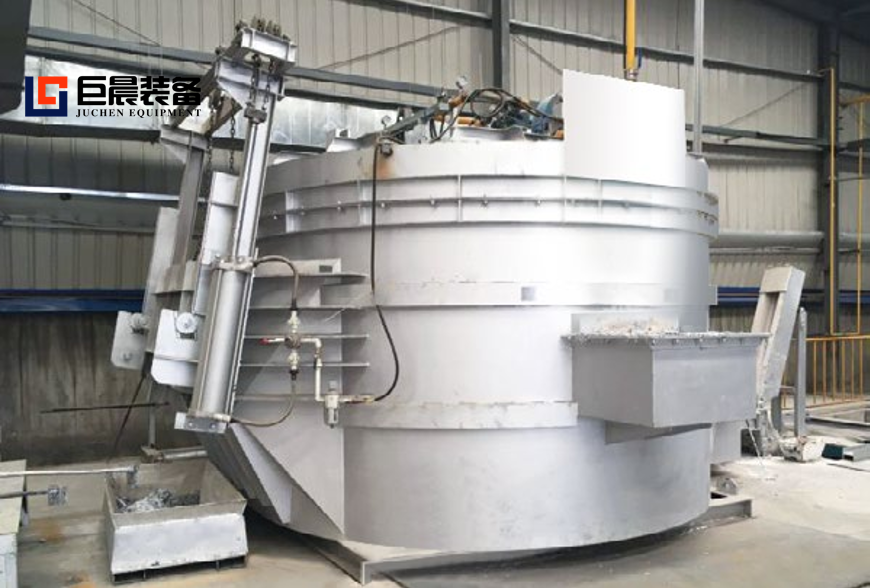

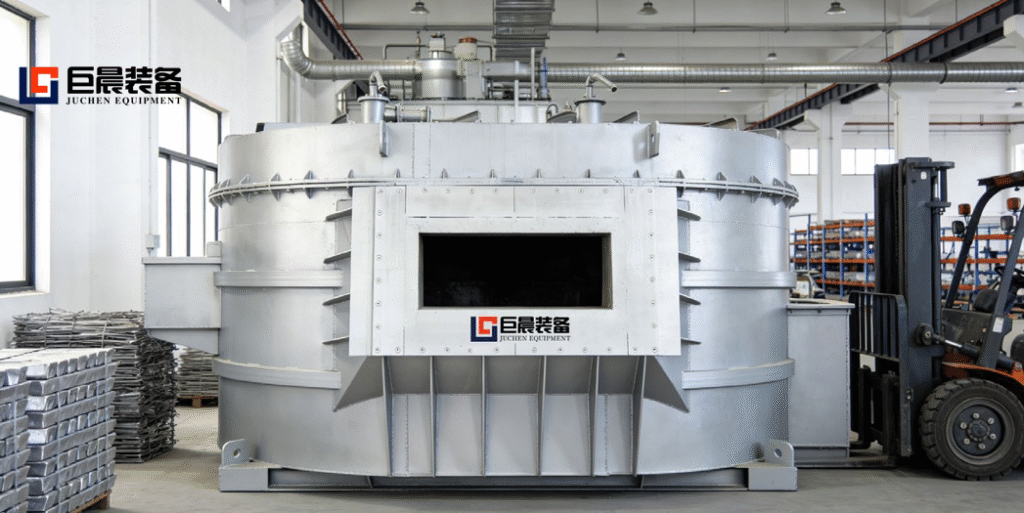

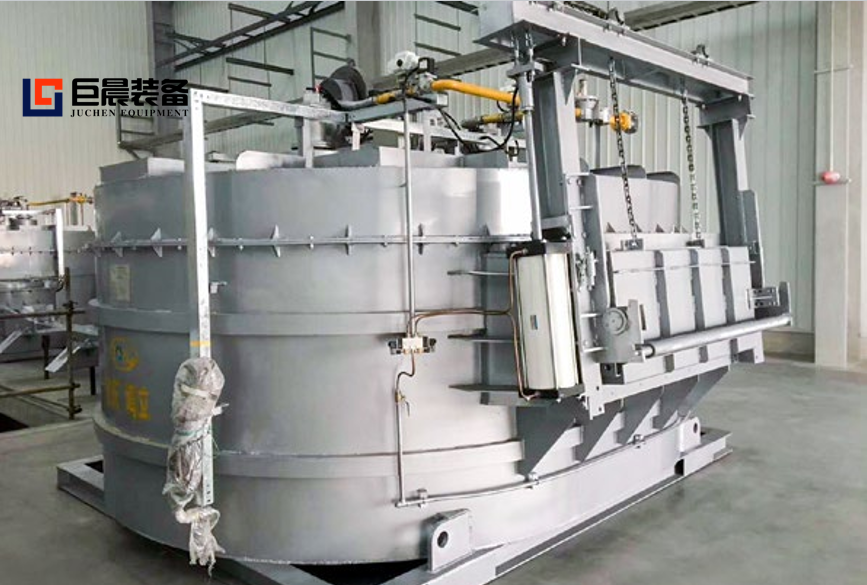

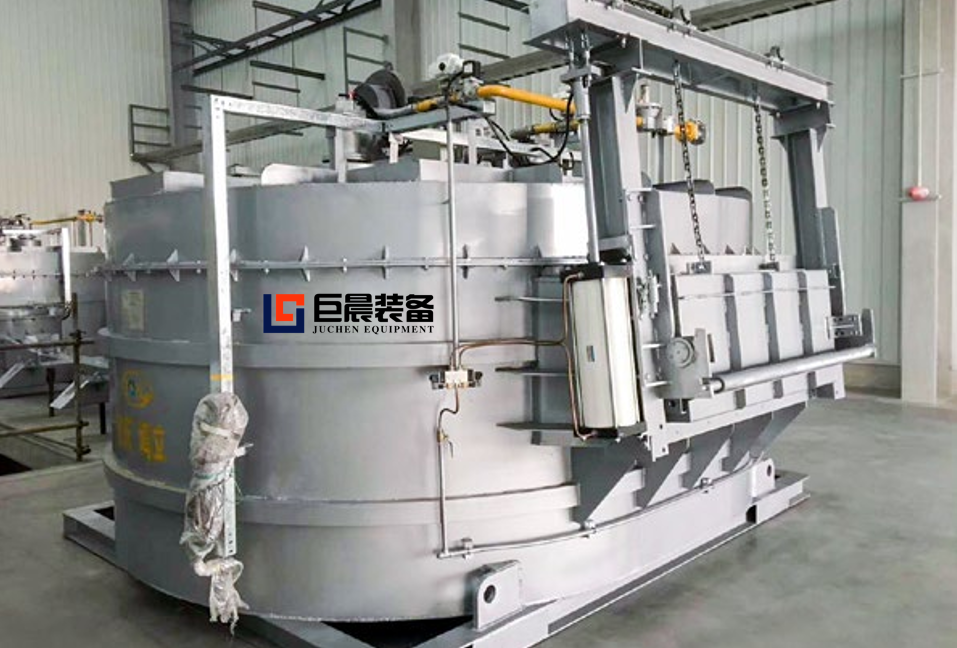

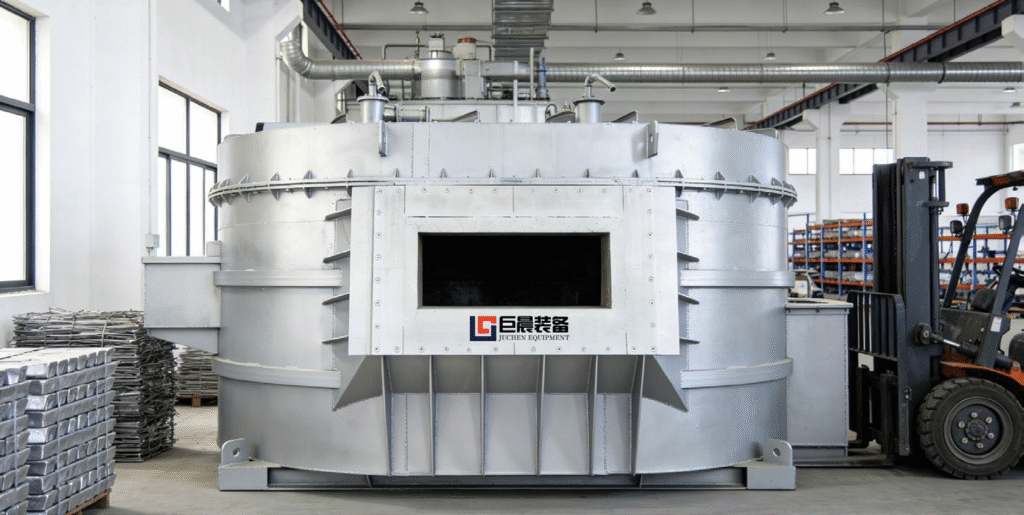

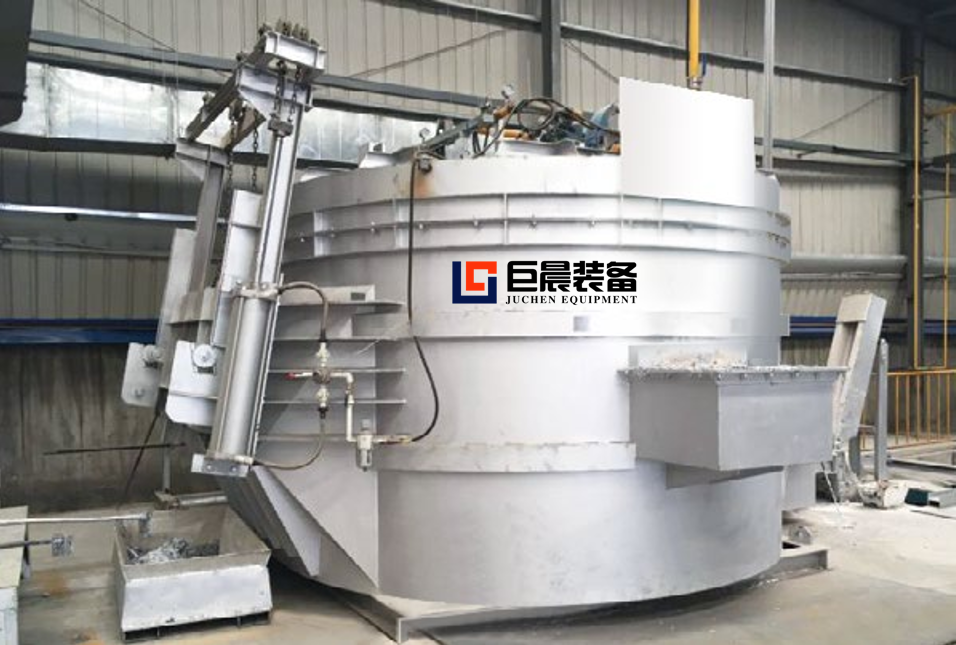

Holding furnace is a critical piece of industrial equipment used in the foundry and metalworking industries.Its primary function is not to melt metal,but rather to store and precisely maintain already-melted liquid metal at a target casting temperature,ready for subsequent casting operations.
Product Introduction
The purpose of the equipment is to stand the aluminum alloy and keep it warm with gold.
Rated working conditions(precondition):
- There is no easily oxidized material(such as aluminum chips,etc.)in the molten aluminum material added to the holding chamber.
- Always keep a certain amount of molten aluminum in the holding furnace.
- Replenish the temperature of molten aluminum,based on 680°C.
- The furnace should be in a stable state of continuous operation day and night.
Core Function and Working Principle
The holding furnace acts as a “buffer” in the production line, separating the melting process from the final casting step. Its main operating principles are:
Precise temperature control – Heating systems (e.g., electric resistance, induction, or gas‑fired) supply heat to compensate for continuous heat losses through the furnace shell, keeping the molten metal temperature strictly within the required process window.
Improved efficiency and quality:
Decoupled production
– The melting furnace can be emptied immediately after a batch and start the next melt, while the holding furnace continuously supplies metal to the casting station, maximising the melting furnace’s throughput.
Homogenisation
– Furnace designs (e.g., inductive stirring in channel-type units) ensure uniform temperature throughout the bath.
Peak- shaving with off- peak electricity
– Metal can be melted during lower-cost electricity periods and stored in the holding furnace, acting as an
“energy reservoir” and reducing overall energy costs.
Typical Structure and Components
A standard holding furnace generally comprises the following parts:
Furnace body and bath
– Steel shell with internal refractory and insulating linings.
Heating system
– e.g., electric resistance elements, induction coils, or gas burners.
Cover (lid)
– For heat retention and to prevent gas absorption or oxidation of the molten metal.
Tapping/pouring system
– e.g., stopper-rod mechanisms or tilting mechanisms to control metal outflow.
Control system
– Usually micro-processor based with PID technology for high-accuracy automatic temperature regulation.
Key Considerations of Holding Furnace
When selecting and operating a holding furnace, the following points are critical:
Capacity matching
– The holding furnace capacity must align with the upstream melting furnace output and the downstream casting equipment demand.
Refractory materials
– The lining must offer excellent corrosion resistance and thermal insulation, suited to the specific metal being handled (e.g., steel, iron, aluminium, copper).
Safety
– For gas-fired units,mandatory safety interlocks include pressure monitoring,alarms,and emergency shut-off systems.
Our company product can install the CMS system on different devices.And the CMS is an industrial interconnection PaaS platform that provides customers with overall olutions for intelligent equipment systems and assists in the digital transformation and upgrading of users in the non-ferrous metal industry.
And the CMS system has a highly autonomous and scalable open platform that supports drag and drop configuration,scripting language,and high-level language development.Integrate custom multilingual tools,allowing for the free addition of new languages,making it easy to switch between multiple languages.
In summary, the holding furnace is an indispensable component of modern foundries. Through precise temperature control and effective buffering,it ensures molten metal quality and smooth production flow.
